All about the Pontoonz pods

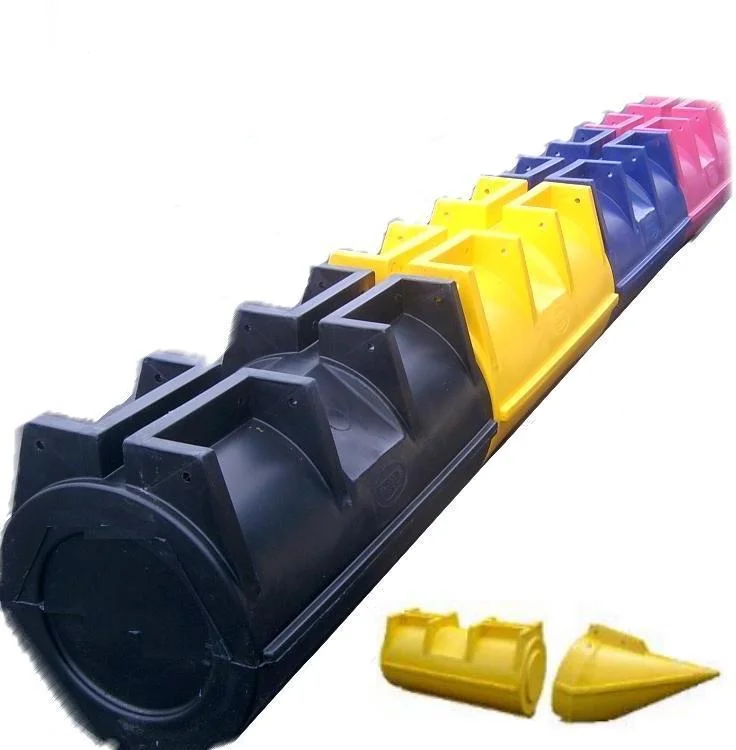

Any colour you want!

Any colour you want!

Rotomolded, marine grade, uv stabilised, polyethylene (plastic)

Boat Pods and bow pods

Main Boat pod dimensions: 1200mm (4ft) length x 600mm (2ft) diameter. 25kg (50lb) each

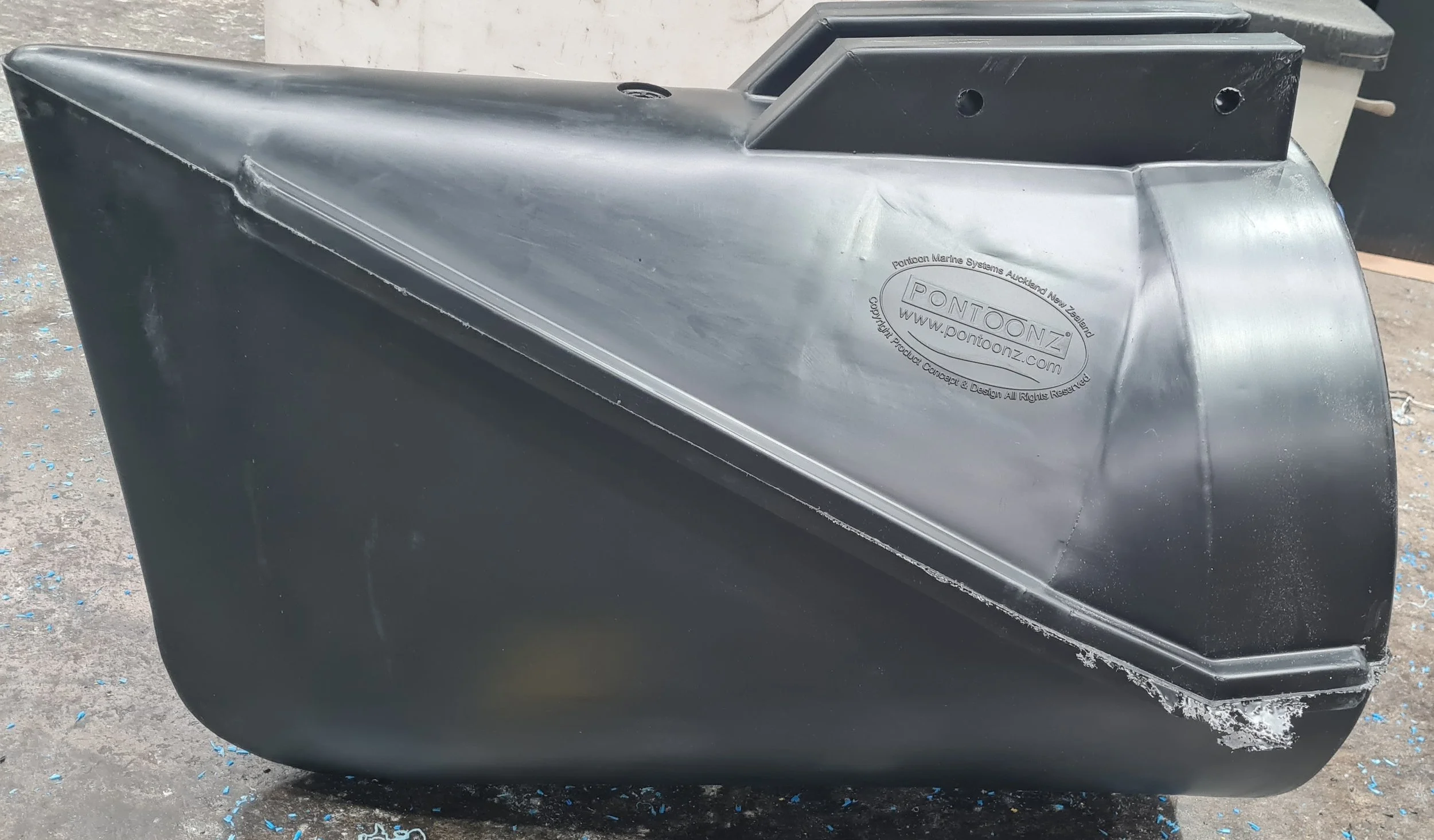

Bow pod dimensions: 900mm(3ft) length x 600m (2ft) diameter. 14kg (31lb) each

Wall thickness 5-7mm (0.2-0.27in)

Draft unloaded: 150mm (6in)

Recommended load factor: 150kg (330 lb) per pod half immersed. 350kg (770lb) fully immersed

Life: greater than 15 years

Perfect for:

Boats which will move!

Download Boat and Bow Pods Specifications

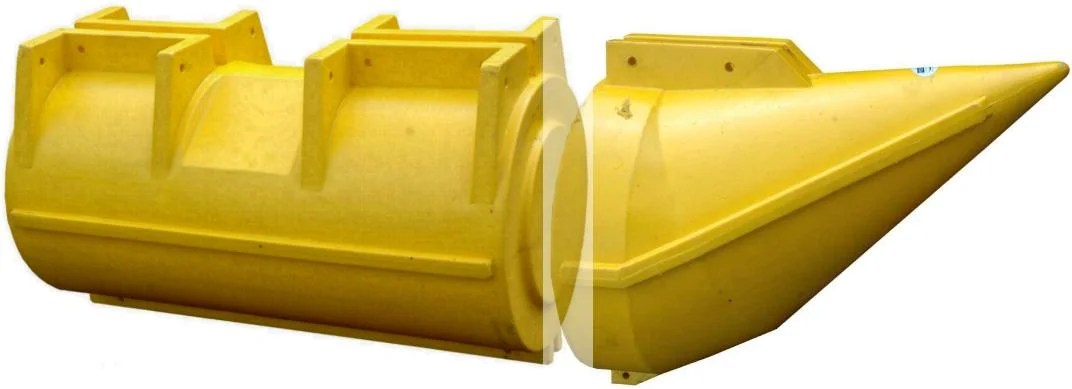

Main boat pod and bow pod

Main boat pod and bow pod


RAFT PODS

Dimensions:

Wall thickness: 5-7mm (0.2-0.27in)

Recommended load factor: 100kg half immersed

Perfect for:

Barges, working platforms

Specs as for Boat and bow pods


WALK PODS

Dimensions: 1200mm x 1200mm x 250mm deep

Recommended load factor: 150 kg half immersed

Perfect for:

Walkways and rafts



FLOAT PODS


Dimensions: 500mm x 500mm x 400 deep

Recommended load factor: 40 kg per pod

PERFECT FOR:

Docks, jetties, swim rafts

Download Floatpod specs
